Optique LED DUAL STREAM 45mm

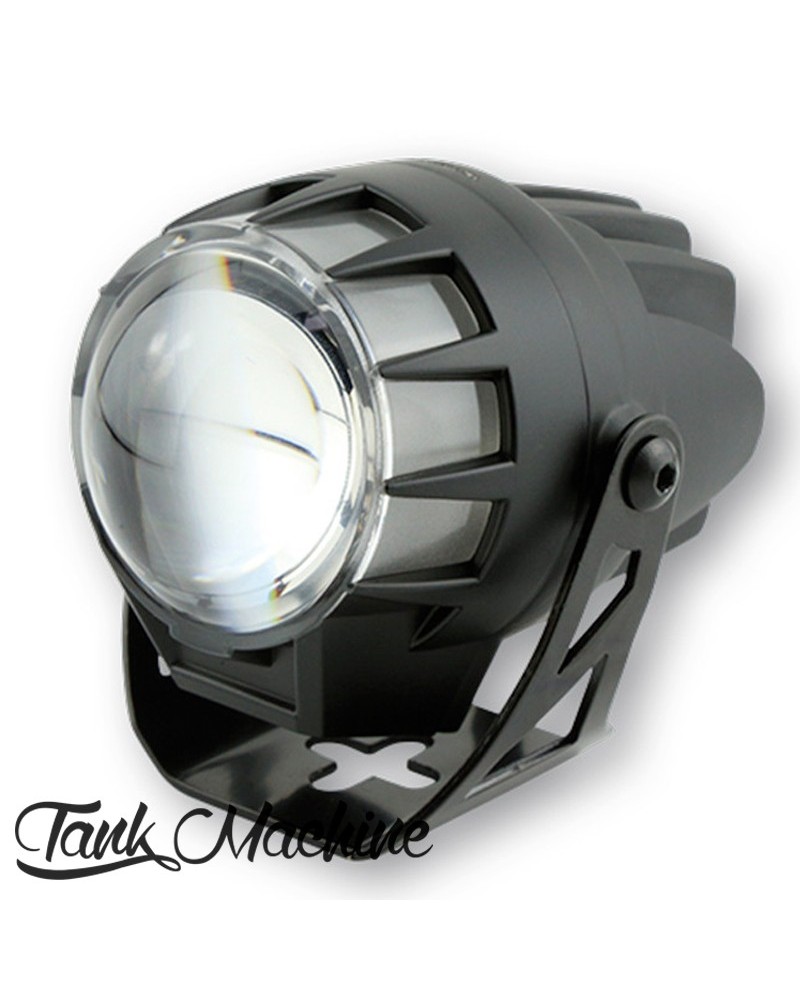

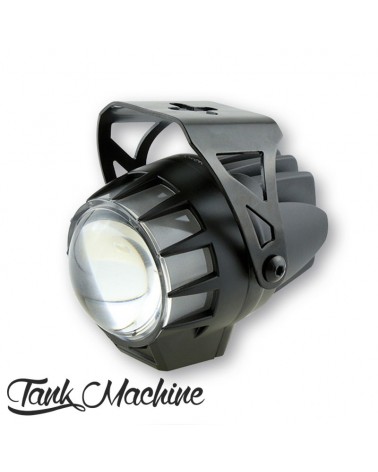

HIGHSIDER LED headlight DUAL-STREAM, black, E-approved

The small all-in-one ellipsoid headlight with round lens is a powerful LED main headlight in a black housing and a sturdy holder. The special feature of the DUAL-STREAM is the parking light ring around the ellipsoid lens and the shutter technology, with a mechanical bezel for switch from high beam to low beam. By using this modern LED technology, the smallest housing dimensions can be realized with the greatest possible light output at the same time.

Our highlights – give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!

Dimensions:

Diameter of lens: approx. 45 mm

Height: 70,2 mm

Width: 67 mm

Depth: 96,5 mm

Distance between mounting holes: 67 mm

Mounting holes on the side: M5 mm

Material housing: aluminum

Weight: 0,230 kg

Power consumption:

12V / 12W, 739.3 lm, passing beam

12V / 19W, 739.3 lm, driving beam

Cable assignment:

Low beam = white (+)

High beam = blue (+)

Position light = brown (+)

Mass = black (-))

Delivery contents: 1 piece
