Optique Led 5"3/4 (143mm) Type 6

HIGHSIDER LED main headlight insert TYP 6 with DRL, round, 5 3/4 inch, E-marked.

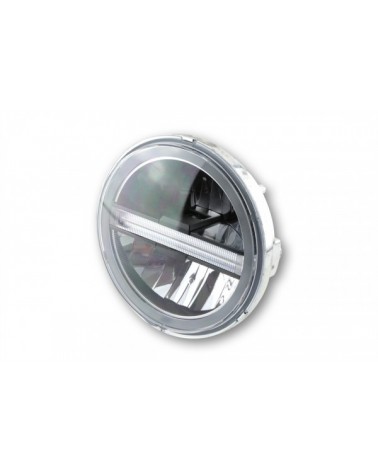

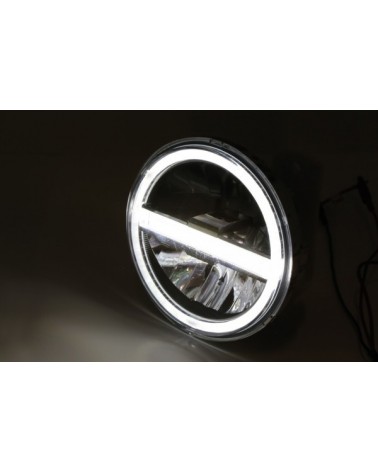

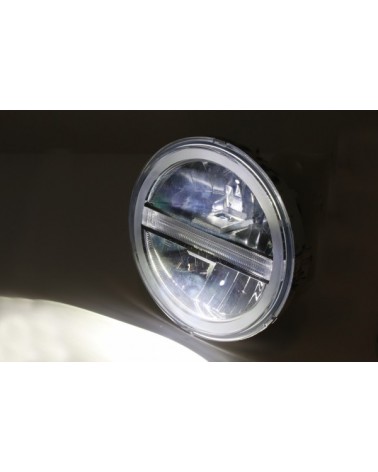

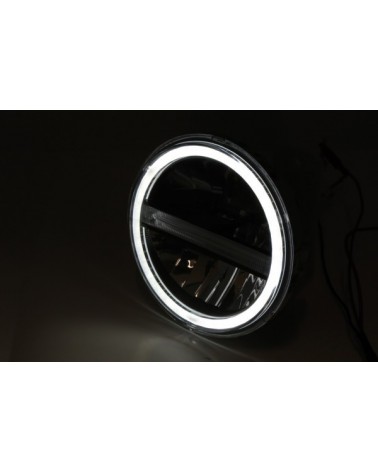

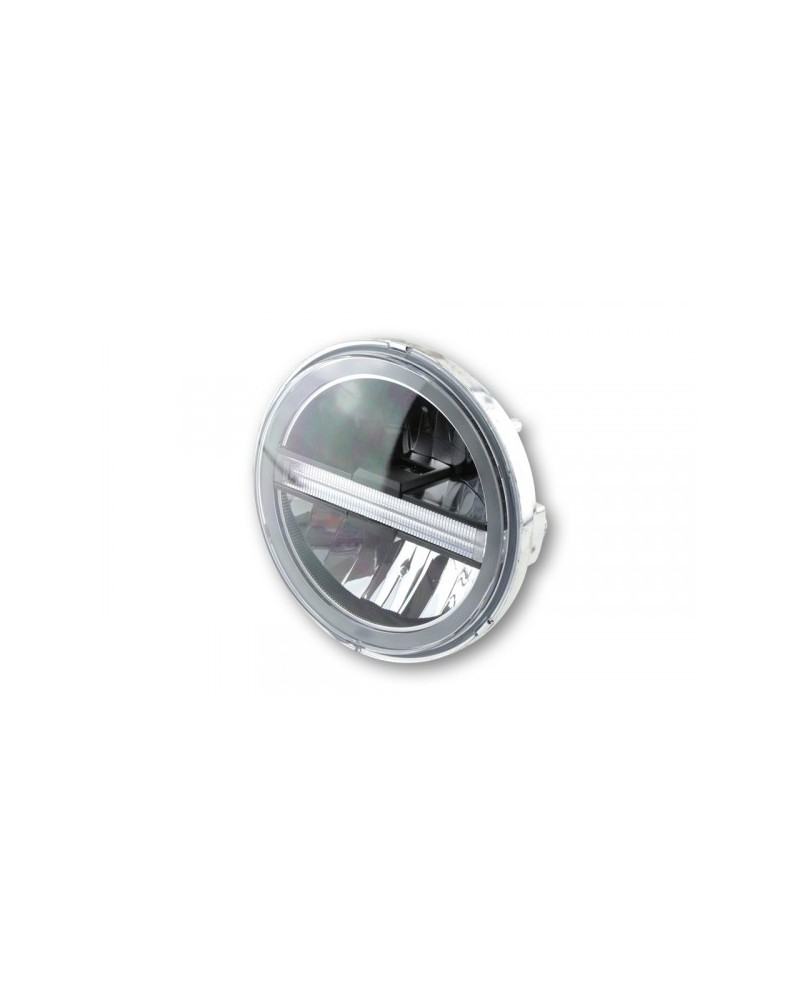

Round, chromed insert with high-beam, low-beam, daytime running light and parking light ring. The daytime running light is in the middle in a strip and the low beam is in the upper half of the insert. Is the high beam lighting on shine the light halves upper and bottom.

Our highlights give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!

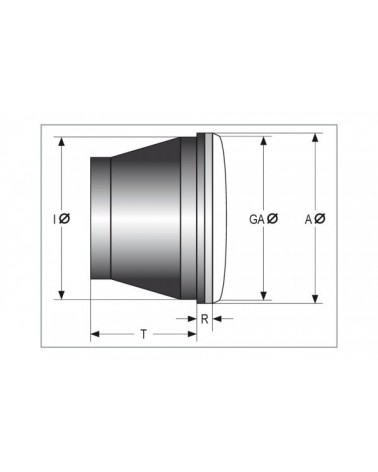

Dimensions
Diameter A = 143 mm
Diameter GA = 133 mm
Diameter I = 131 mm, T = 70 mm, R = 13 mm
Cable length = 400 mm

Cable assignment:
Plug = 3-pins
White = low beam (+)
Blue = high beam (+)
Green = ground (-)
Red = DRL (+)
Brown = parking light (+)

Delivery contents: 1 Pcs. incl. plug housing
